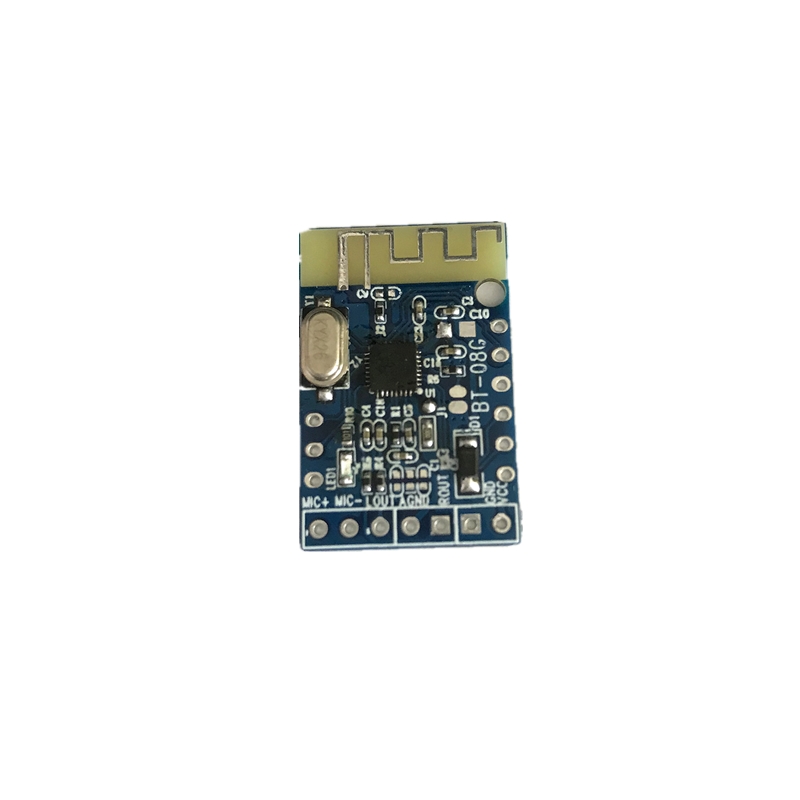

BT-08G Audio bluetooth 5.0 receiver player board

Product describe

 BT-08G 5V Audio bluetooth 5.0 receiver player board


1, Main function.

Compliant to Bluetooth 5.0 version, backward-compatible with BT1.2, 2.0 and 2.1

Support SCMS-T content protection method;

Class 2 power level, RF Performance: Tx:0dBm, Rx: -80dBm;

Support simple pairing and auto reconnection function;

Support MP3/SBC decoder;

support 16bit Stereo DAC with >90dB SNR.

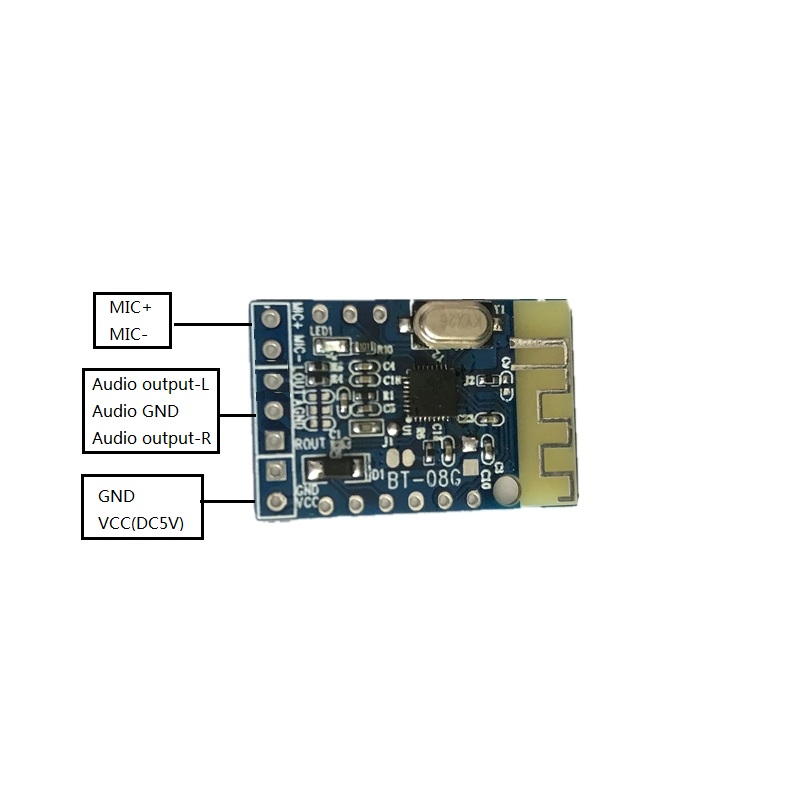

7Pins connector :

MIC+, MIC-, Audio output-L, Audio GND, Audio output-R, GND, VCC(5V)


2, LED light: when power on, the light will on,

When connect Bluetooth, it will flash.

Bluetooth  receiver distance: 10 meters.


 3, Power supply DC5V

4,Product dimension : 28*18.4mm


5, Application: Use for amplifier, speaker, audio products.
