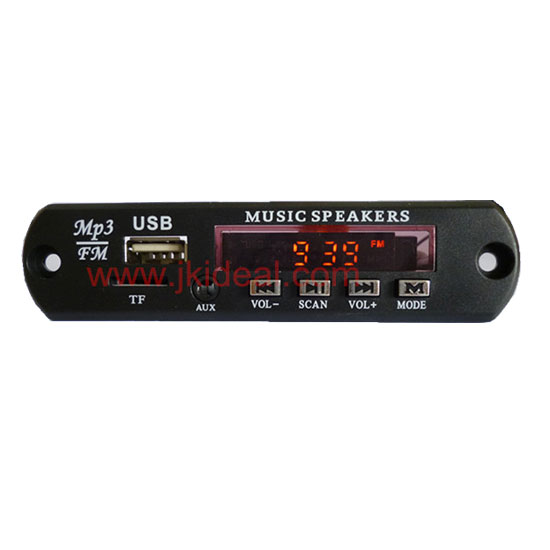

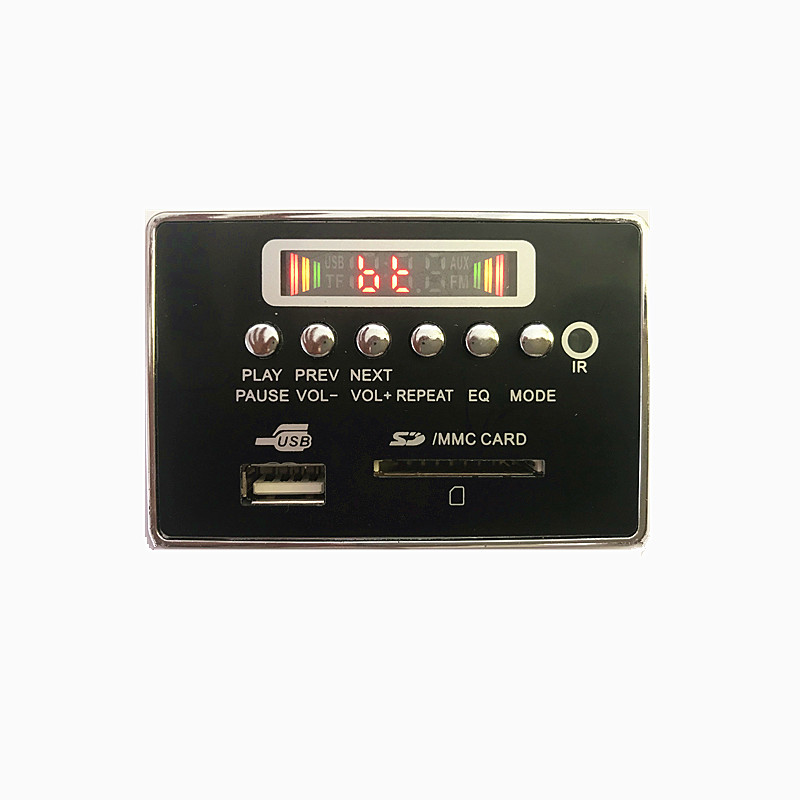

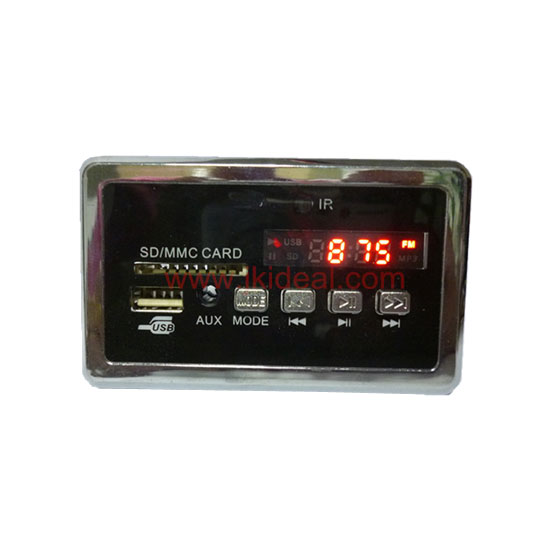

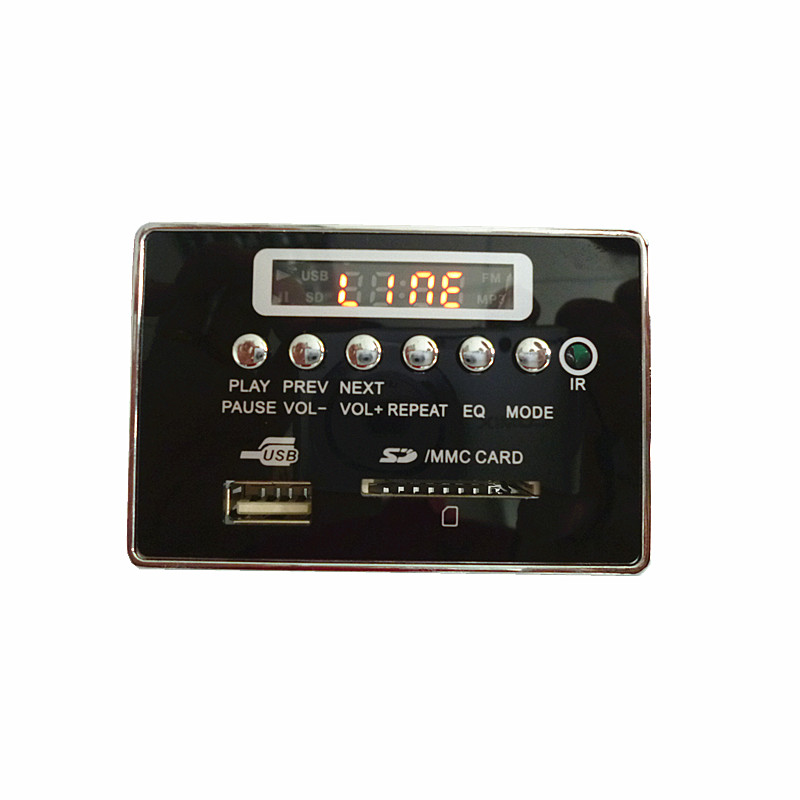

JK6890BT USB FM Bluetooth Mp3 Decoder Board Player Module

JK6890BT USB FM Bluetooth Mp3 Decoder Board Player Module

1,Support USB, SD card

2,Support FM radio 87.5 ~108MHz

3,Support format:MP3,WMA, WAV, FLAC, APE.

4,Support colorful LED display, with Screen spectrum function

5,Bluetooth:play MP3 by bluetooth device,(optional: can speaker microphone by bluetooth. )

6,Support IR remote control

7,Support Line in

8,Support folders choice.

9, Panel size: 75 mm (length) * 50mm (width)

 * Support OEM & ODM service.

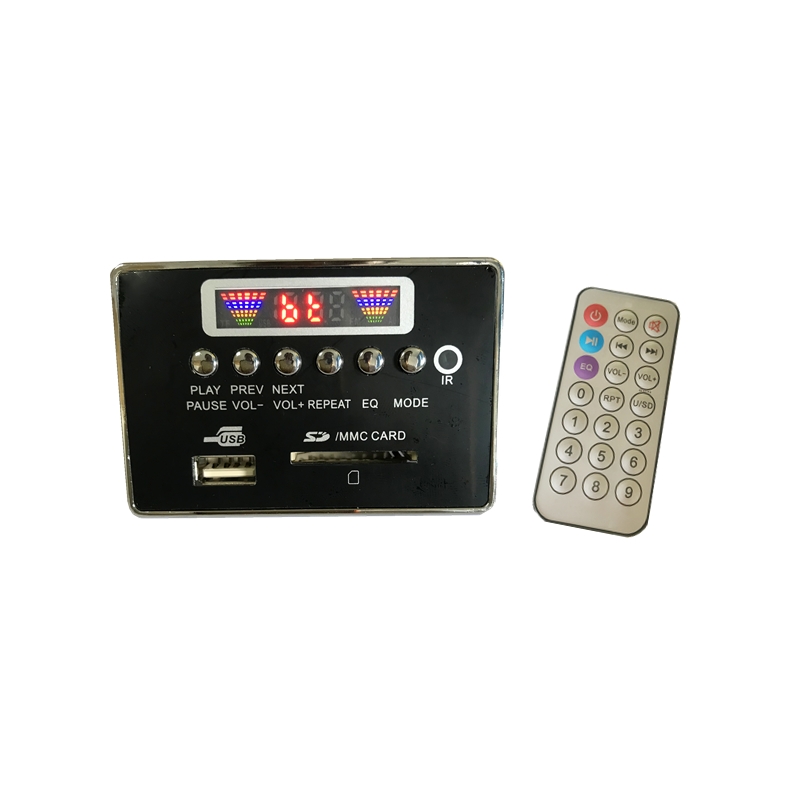

Remote control function:

Power :ON/OFF  (standby)

Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode

PREV: For Previous song in USB/SD state

NEXT: For Next song in USB/SD state

VOL+ : Volume up

VOL-: Volume down

REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .

STOP: For stop the song playing .

MUTE: First press mute , press again will release from mute.

EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN

PLAY/PAUSE : For play and pause in USB/SD state.

Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

Applications :

HI-FI system , MP3 amplifier , Boom Box  ,embedded Audio systems
