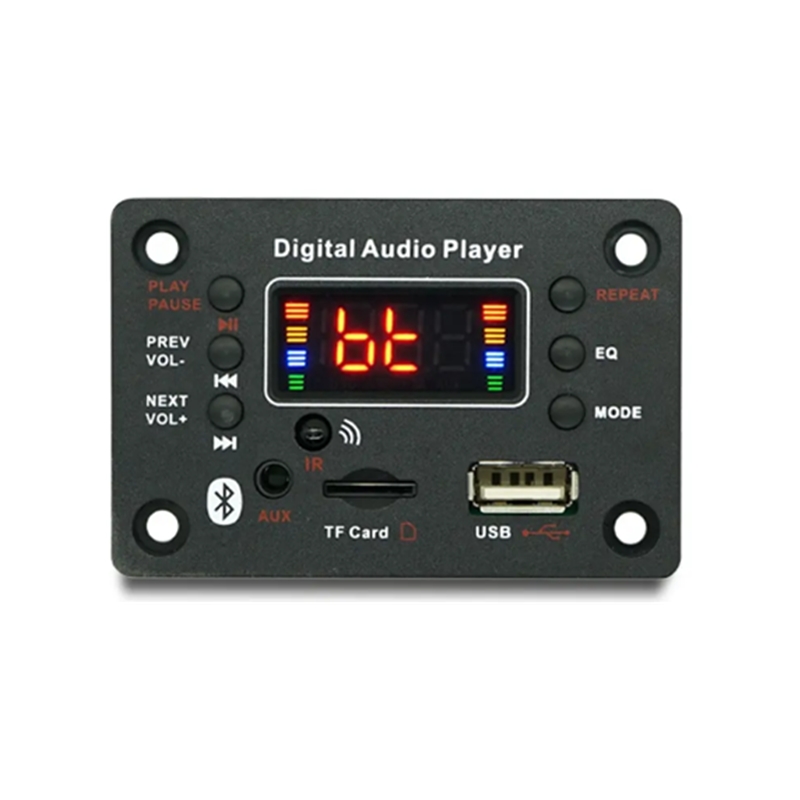

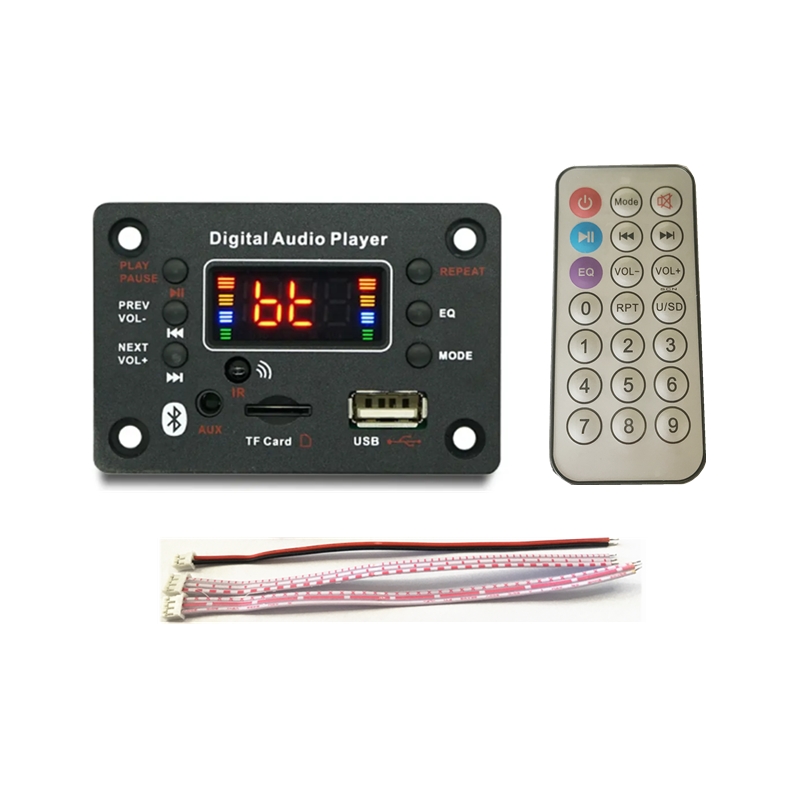

JK6883 For Amplifier USB FM Record Bluetooth Mp3 Player Decoder Module

Main functions:

1,Support USB, TF card

2,Support FM radio 87.5 ~108MHz

3,Support format:MP3,WMA, WAV, FLAC, APE.

4,Support colorful LED display, with Screen spectrum function

5,Bluetooth:play MP3 by bluetooth device,bluetooth 5.0 version,

distance more than 10 meters.

6,Support IR remote control

7,Support Line in(AUX)

8,Support folders choice.

9,Support Record into USB DISK or TF card, format: 128kbps MP3.

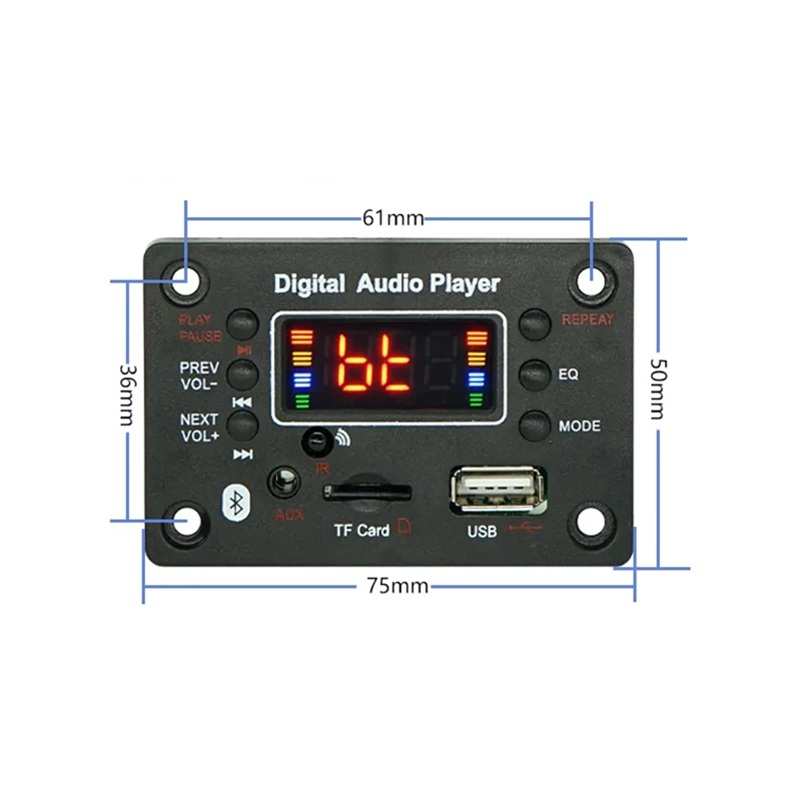

10,Panel size: 75 mm (length) * 50 mm (width)

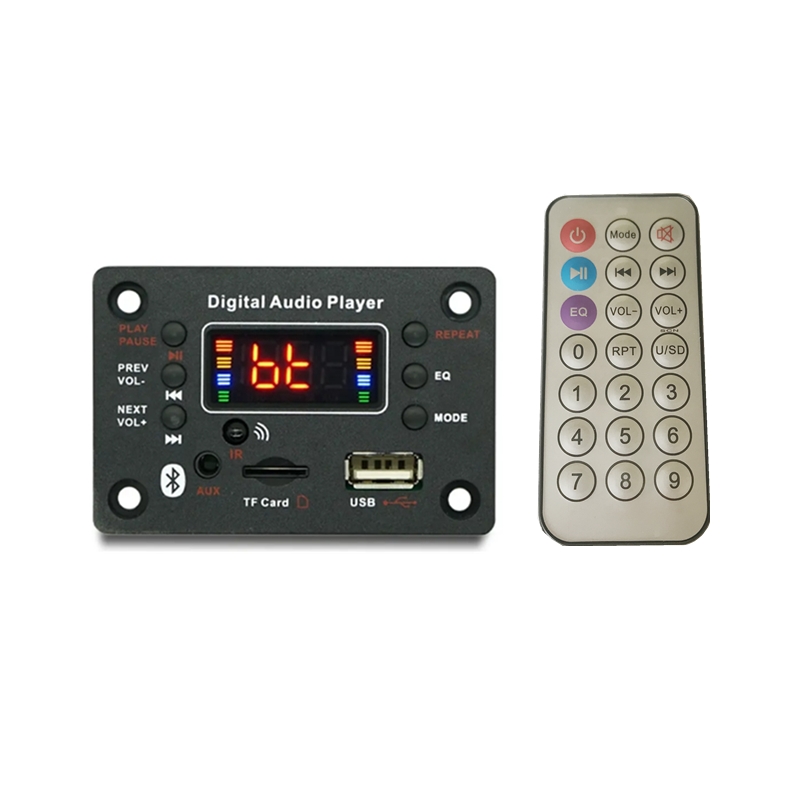

Remote Control Keys function

Power :ON/OFF  (standby)

Mode : USB/SD/FM/Line in(AUX)/Bluetooth for switch the working Mode

PREV: For Previous song in USB/SD state

NEXT: For Next song in USB/SD state

VOL+ : Volume up

VOL-: Volume down

REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat .

STOP: For stop the song playing .

MUTE: First press mute , press again will release from mute.

EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN

PLAY/PAUSE : For play and pause in USB/SD state.

Button 0-9 : Select song in USB/SD state, if the song number over 9 , just input the numbers in series .

Applications :

HI-FI system , Bluetooth speaker, MP3 amplifier , Boom Box  ,embedded Audio systems...
