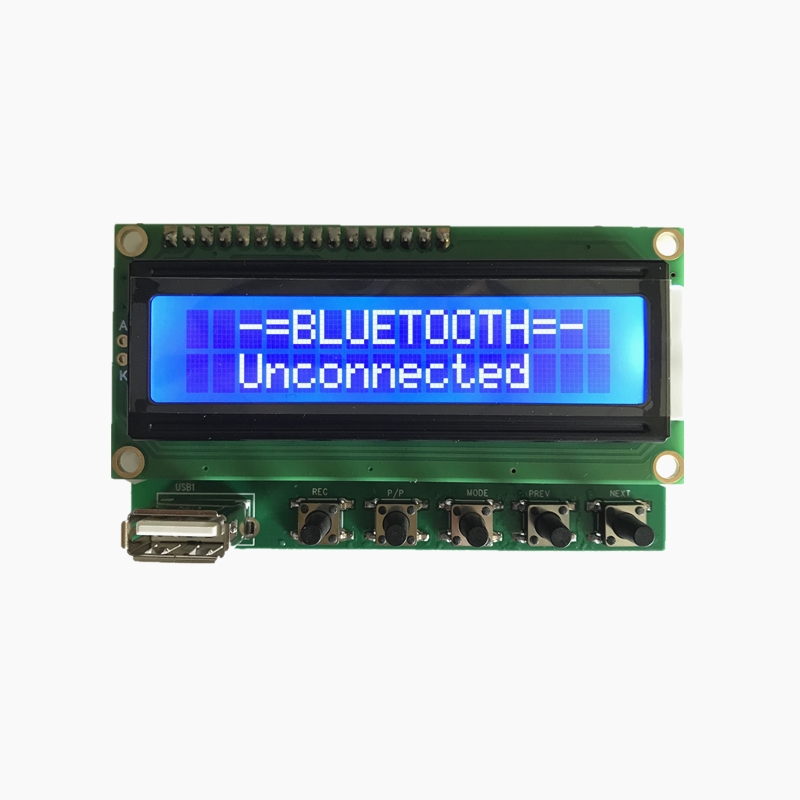

JK1602-05 For Amplifier Bluetooth 5.4 LCD Display Usb Sd Player Fm Radio Kit Circuit Bluetooth Mp3 Decoder Board

Main function

1.Bluetooth 5.4 version /Recorder /USB /Line in/ FM /led display

2. Format:MP3 /WMA /WAV /FLAC/APE

3. 162 LCD display

4. IR remote control.

5. Recorder Line in, FM, Bluetooth.

6, Power supply: DC12V  (optional DC 5v)

7, Product dimension: 80mm*58.5mm

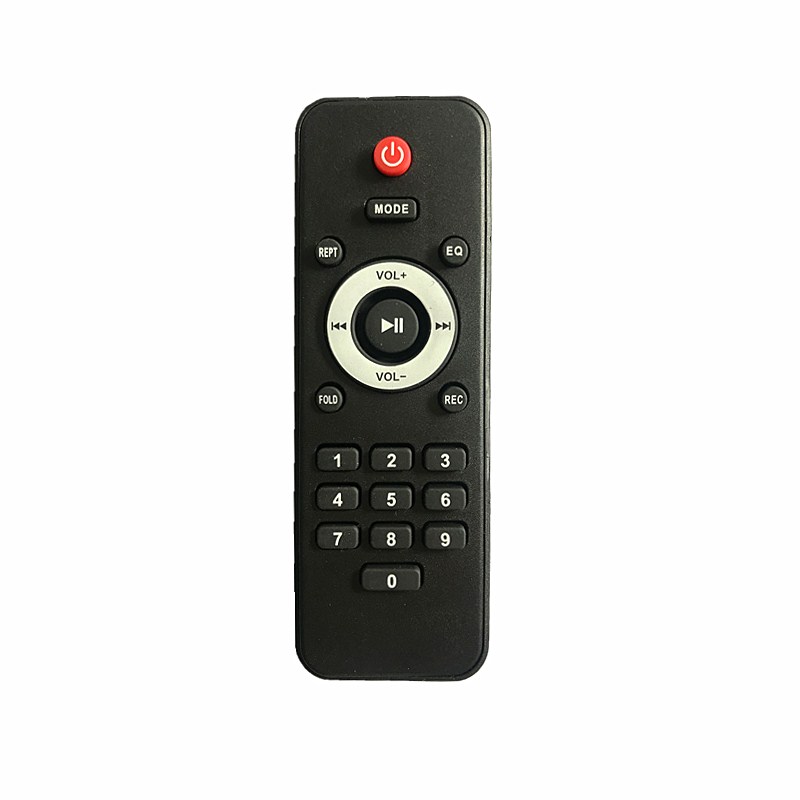

Remote Control function

Power : Standby

Mode : USB/ AUX/FM/Bluetooth switch.

RPT: in USB state, default is all song repeat, can choose one song repeat , all song repeat and folder repeat.

        Long press for play recorded file.

EQ: NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN

PLAY/PAUSE : For play and pause in USB /AUX/Bluetooth mode.

Under FM mode, long press to automatic selection.

PREV: same Previous key function.

NEXT: same Next key function.

VOL+: All modes, volume +.

VOL-: All modes, volume -.

FOLD: Under USB mode, press next folder.

       Long press for previous folder.

REC:  When AUX, Bluetooth, FM mode, press for recording, second press for save recorded file.

Button 0-9 : Select song in USB/SD modes, press number select song number.

Select station in FM mode, press number can select station.

Applications :

HI-FI system , Bluetooth speaker, MP3 amplifier , Boom Box  ,embedded Audio systems...
